HFC-227ea 自動滅火系統
The Right Choice
 |
Aquality
fire protection system is much more Aquality fire protection system is
much more cost effective than replacing high-value critical data and
sensitive electronic equipment. Pyro-Chem has integrated
state-of-the-art detection technology and clean-agent chemistry to
provide affordable fire protection. |
Fast.

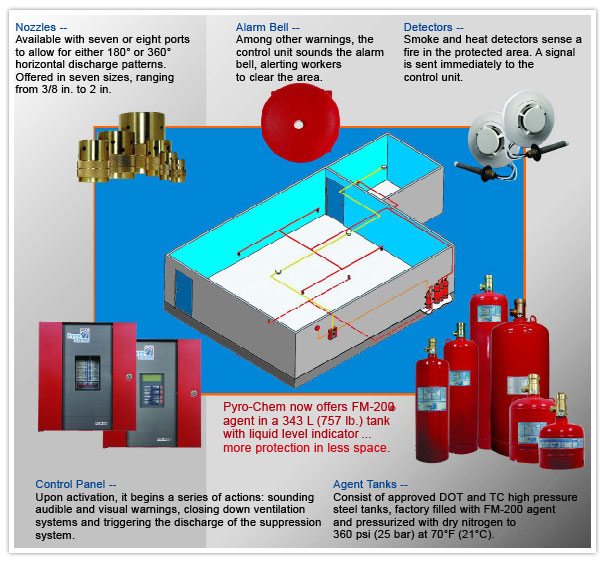

Pyro-Chem offers two programmable releasing panels (PCR-100 and
PCR-400IP) that are compatible with fast acting smoke detectors to
sense fire in its early stages. Upon system release, FM-200 Clean-Agent
is discharged. |
Effective.
Similar to Halon 1301, FM-200 agent extinguishes Class A, B and C fires
by interrupting the chemical chain reaction. It absorbs heat,
accelerating the suppression process. |
Safe.
The U.S. EPAhas accepted FM-200 for use in occupied spaces at
concentrations up to 9% by volume and up to 10.5% by volume for
normally non-occupied spaces. It is non-toxic when used in accordance
with NFPAStandard 2001. |
Clean.
When protecting valuable assets or sensitive equipment, FM-200 agent
stands above conventional agents. Unlike dry chemical, FM-200 is a
colorless, odorless gas that leaves no residue to clean up. Unlike
water, FM-200 is an electrically nonconductive agent that will not
short-out electronic equipment. And unlike the very cold discharge of
carbon dioxide, FM-200 will not thermally shock delicate circuitry. |
Earth Friendly.
FM-200 will not deplete stratospheric ozone and it has a short
atmospheric lifetime (31-42 years). As such, it is part of the E
SNAPlist of acceptable Halon alternatives that are approved for use in
total flooding, special hazard fire suppression systems. |
Fire System Selection
Pyro-Chem FM-200 Systems are recommended when one or more of the following conditions exist:
 |
The value of the area’s contents or its importance to business
continuity requires a fire suppression system that can react in seconds. |
 |
|
Water sprinklers will damage the contents of the area to be protected. |
|
Personnel occupy the area to be protected. |
|
Post fire cleanup must be eliminated. |
|
Ease of design and installation is needed. |
Typical Application
|
Cell Sites |
|
Computer Rooms & Subfloors |
|
Laboratories |
|
Healthcare Facilities |
|
Museums, Art Galleries, Libraries |
|
Process Control Rooms |
|
Robotic Systems |
|
Tape Storage Libraries |
|
Telecommunications Facilities |
|
Telephone Equipment Rooms |
|
Vaults/Record Storage |
|
Historical Buildings |
Approvals and Standards
The Best Service in the Industry…
Our hassle-free purchasing process is just the beginning. Pyro-Chem has
highly skilled technicians available to answer any questions during the
planning, installation or operation of its systems after the sale.
|
Factory Mutual Research Corporation (FMRC)
Underwriters Laboratories, Inc. (UL) |
|
Underwriters Laboratories of Canada (ULC) |
|
NFPA2001: Clean Agent Fire Extinguishing Systems |
|
ISO-14520:Gaseous Fire Extinguishing Systems |
|
EPASNAPReport |
|
MEAApproved |
|
